3PE coating is a type of anti-corrosion coating used in the oil and gas industry. It is a three-layer coating system that consists of an epoxy primer, a polyethylene adhesive layer, and a polyethylene outer layer. This coating system is applied to steel pipes to protect them from corrosion and extend their lifespan. In this article, we will discuss the process and characteristics of 3PE coating.

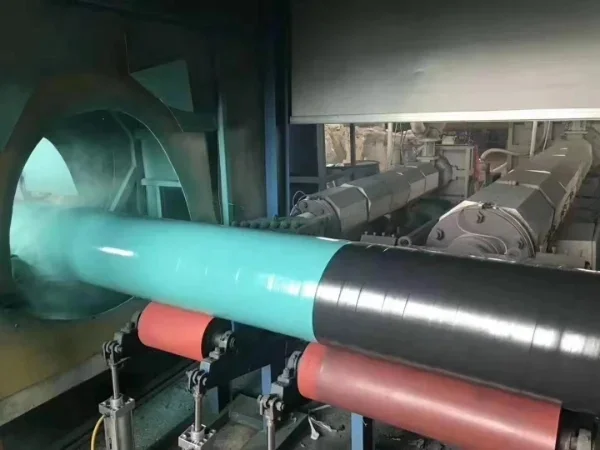

Process of 3PE Coating

The process of 3PE coating involves several steps. The first step is surface preparation, which involves cleaning the steel pipe surface to remove any rust, dirt, or other contaminants. This is done using a variety of methods, including sandblasting, shot blasting, and chemical cleaning.

The second step is the application of the epoxy primer. This is done using a spray gun or a roller. The primer is applied in a thin layer and allowed to dry for a specified period of time.

The third step is the application of the polyethylene adhesive layer. This layer is applied using a hot-melt extrusion process. The polyethylene is melted and applied to the surface of the pipe. The adhesive layer is then allowed to cool and solidify.

The final step is the application of the polyethylene outer layer. This layer is also applied using a hot-melt extrusion process. The polyethylene is melted and applied to the surface of the adhesive layer. The outer layer is then allowed to cool and solidify.

Characteristics of 3PE Coating

1. Excellent Corrosion Resistance

The 3PE coating system provides excellent corrosion resistance to steel pipes. The epoxy primer provides a barrier against corrosion, while the polyethylene layers provide additional protection against moisture and other corrosive elements.

2. High Impact Resistance

The polyethylene layers of the 3PE coating system provide high-impact resistance to steel pipes. This makes them suitable for use in harsh environments where the pipes may be subjected to mechanical damage.

3. Good Adhesion

The polyethylene adhesive layer of the 3PE coating system provides good adhesion between the epoxy primer and the polyethylene outer layer. This ensures that the coating system remains intact and provides long-lasting protection to the steel pipes.

4. Easy Application

The 3PE coating system is easy to apply using standard coating equipment. This makes it a cost-effective solution for protecting steel pipes from corrosion.

5. Environmentally Friendly

The 3PE coating system is environmentally friendly as it does not contain any hazardous materials. This makes it a safe and sustainable solution for protecting steel pipes from corrosion.

In conclusion, the 3PE coating system is a highly effective solution for protecting steel pipes from corrosion. Its excellent corrosion resistance, high impact resistance, good adhesion, easy application, and environmental friendliness make it a popular choice in the oil and gas industry. The process of 3PE coating involves several steps, including surface preparation, application of the epoxy primer, polyethylene adhesive layer, and polyethylene outer layer.
